PSA nitrogen is selected as the raw material, and the selective adsorption is carried out by carbon molecule, and the nitrogen and oxygen are separated by the method of pressure adsorption and desorption.

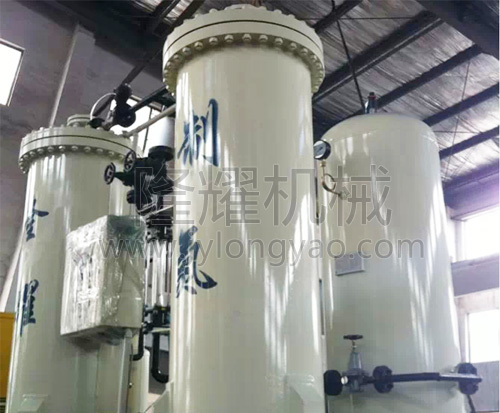

PSA nitrogen process: air purification, compressed (compressed air to remove the oil, water and dust etc.) into the adsorption tower filled with carbon molecular drying election, which in the short term by a large number of molecular oxygen carbon molecular sieve adsorption, and the adsorption of nitrogen molecules in the gas phase is small, so a large number of nitrogen enrichment. Through the upper part of the adsorption tower into the nitrogen buffer tank, while the oxygen molecules in the molecular sieve. The adsorption process is carried out in the pressure case, when the adsorption pressure dropped to normal pressure, oxygen molecules adsorbed on carbon molecular sieve escape into the atmosphere after the muffler through the tower bottom, and molecular sieve regeneration. Usually the PSA nitrogen making machine adopts the double adsorption tower in parallel to carry on the adsorption oxygen production, the desorption regeneration, realizes the separation of oxygen and nitrogen, the continuous gas supply. The above process is automatically controlled by computer control system.
10Nm /h-30000Nm /h fand fand nitrogen flow
Nitrogen purity 98%-99.99% (if the user needs high purity nitrogen, can use the company's nitrogen purification device)
Main features
he technology of molecular sieve filling with international advanced level can effectively improve the adsorption efficiency of molecular sieve and prevent the molecular sieve pulverization, and prolong the service life of the molecular sieve;
Imported valve can be achieved 1 million times without fault;
German SIEMENS program control system to maintain nitrogen purity, flow stability;
Good reliability, under normal operating conditions, the average operation 10000 hours without fault.
